Vector Optima® E-Connector

Industry's 1^st All-Electric Metal-to-Metal Connector

The Vector Optima® E-Connector is a fully electric, API 6A clamp connector for high-pressure operations. It features a single leadscrew, a self-aligning hub, metal to metal seal with a reverse integrity test port and seal performance monitoring, and a fail-safe locking system. Integrated monitoring tracks clamp torque, position, and seal-related pressures during operation.

Inquire Now

Product Description

The Vector Optima® E-Connector™ is the only fully electric, API 6A-compliant clamp connector designed for high-pressure applications such as fracturing, flowback, and intervention. It adapts more than 25+ years of proven subsea Optima® and Duoseal™ sealing technology to high-pressure operations. Engineered for connections up to 15,000 psi, its compact, self-aligning, and fail-safe design uses an electrically actuated single-leadscrew mechanism for fast, precise make-up and disconnect. Integrated smart functionality delivers torque validation, process control, and digital traceability, while the fully electric drive simplifies site operations — optimizing safety, eﬃciency, and reliability in critical field environments.

Benefits:

Electric Actuation

No hydraulic hoses, pumps, or accumulators are required

Seal Verification

Integrated annulus test port allows Reverse Integrity Test (RIT) without disassembly.

Remote Control and Monitoring

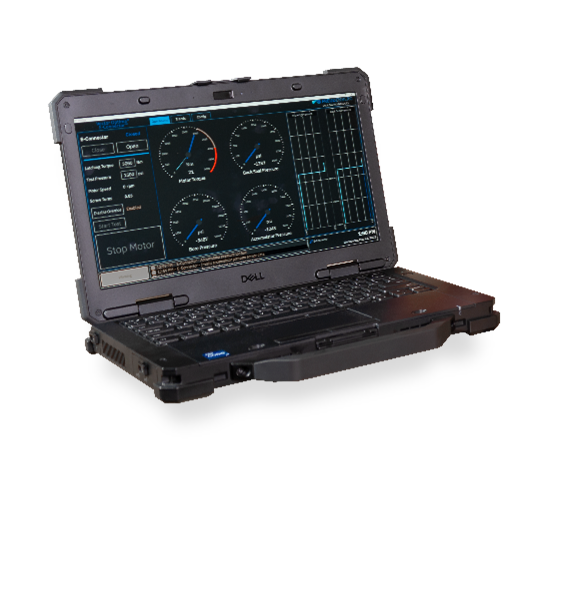

Operated from laptop through Ethernet connection or integrated user interface. Real time monitoring of clamp position, torque, and pressure.

Fail-Safe Locking

A mechanical brake engages at the end of each open/close to prevent clamp back-off in vibration-prone environments.

REAL-TIME MONITORING OF CLAMP POSITION, TORQUE, AND PRESSURE.

Technical Specifications

Specifications:

Parameter	Specification
Pressure Rating	Up to 15,000 psi (API 6A 15K)
Temperature Range	–20 °F to +250 °F
Interface Sizes	5-1/8" and 7-1/16" API 6A 15K Flanges (other interfaces available upon request)
Actuation	Electric Class 1 Div 1 Electric motor-driven single leadscrew
Sealing	Vector Duoseal™ seal with annulus test port
Construction Materials	Available in all material specifications with customization options
Control Unit	Digital interface with pressure transducer; multi-connector capable

Features:

Electric Actuation (no hydraulics)
- Electric motor–driven clamping mechanism using a single leadscrew, with no hydraulics, pumps, or accumulators.
Remote Control and Monitoring
- A single system, connected via Ethernet with real‑time monitoring, can operate multiple connectors.
Seal Verification
- The integrated annulus test port enables Reverse Integrity Testing (RIT) without disassembly and also allows continuous monitoring of seal condition and performance during operations.
Fail-Safe Locking
- A mechanical brake engages at the end of each open/close to prevent clamp back-off in vibration-prone environments.

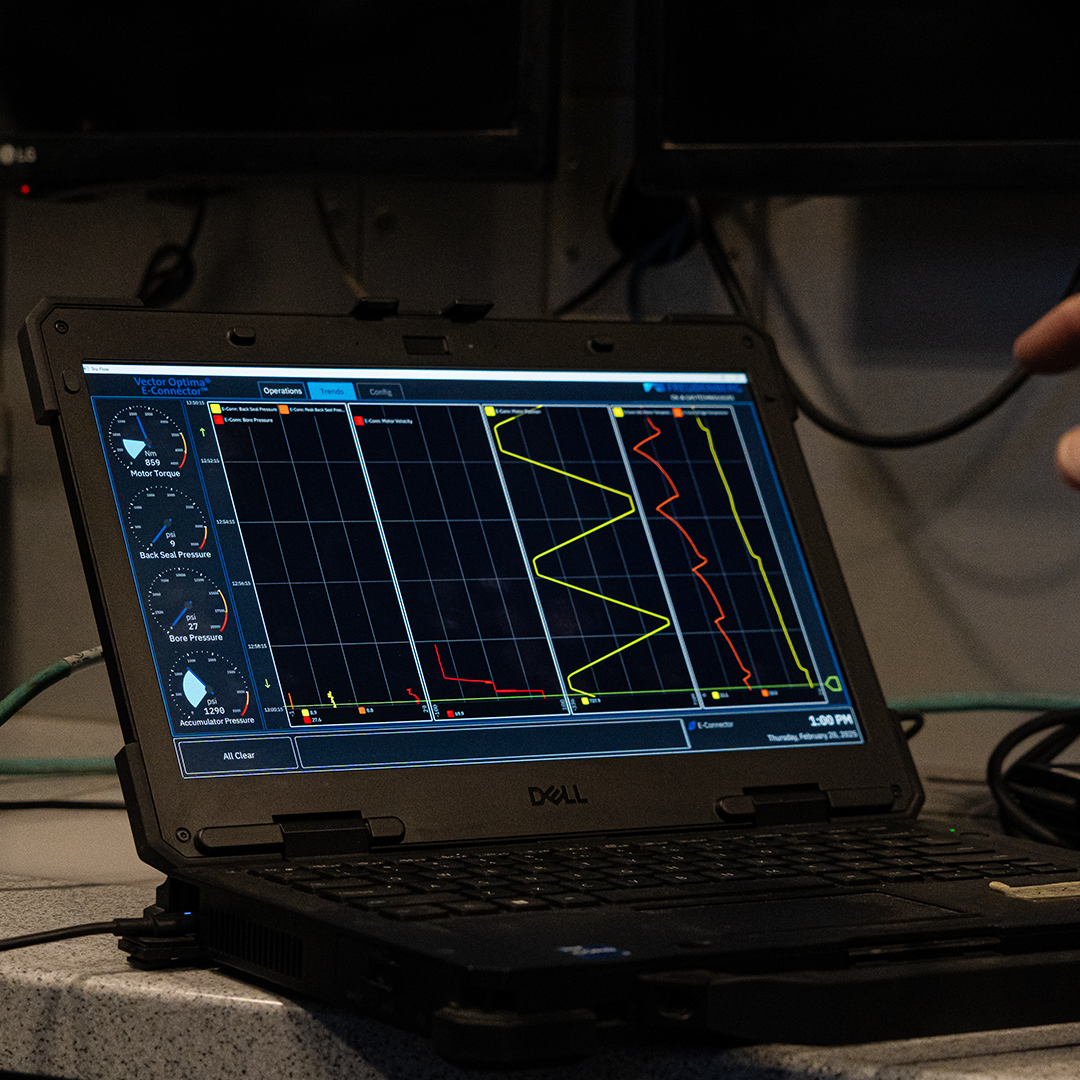

- The system continuously monitors leadscrew torque, number of turns, clamp position, back-seal pressure, and bore pressure.
Multiple Open and close indicators inform the operator of the connector’s position, allowing the operator to continue operations safely.
