UM Type expansion joints

These expansion joints can operate at high temperatures, where vibrations are present and pressure impulses occur. Expansion joints can be customized for flue gas applications and are designed for engine exhaust systems.

Product Description

Features:
  • Customized for flue gas applications, designed for engine exhaust systems.
  • Located in the engine exhaust system, in mainly two areas. The flue gas line between the engine and the turbo charger, and on the charger air lines.
  • Designed for, and operate at high temperatures, where vibrations are present and pressure impulses occur.
Benefits:
  • Highly customizable design: Bellows geometry, material options and combinations
  • Multiply bellows with low spring rate and high cycle life

With loose/ swivel flange connection:

  • Easy installation, flanges can be rotated
  • Flanges are not in contact with medium, which enables lower grade material
  • Connection with non weldable materials possible
  • Galvanic surfaces/ coatings possible
  • Gaskets can often be eliminated

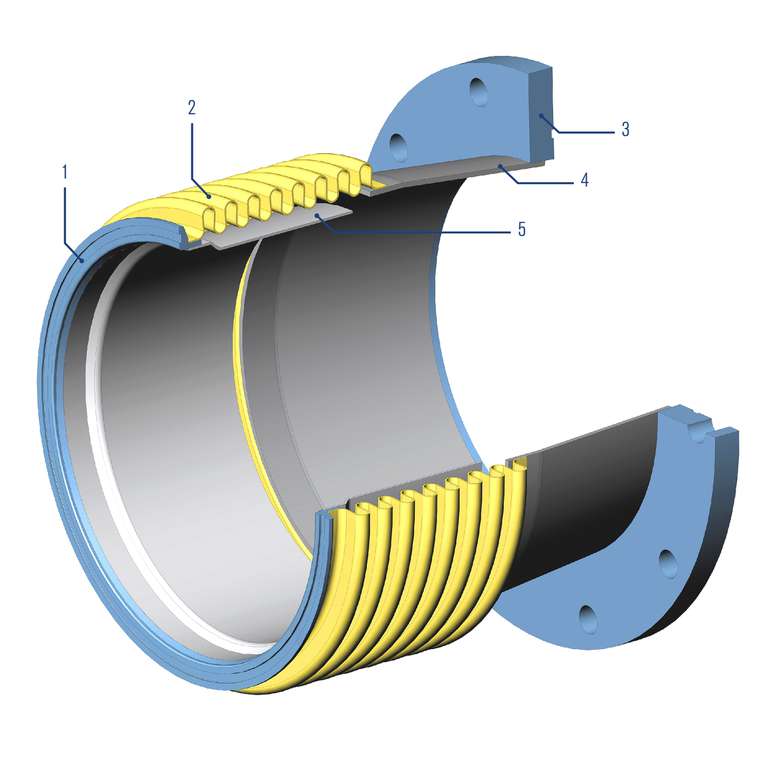

ITEMDESCRIPTION
1V-Clamp flange
2Bellows
3Flange
4Pipe
5Internal liner

Technical Specifications

Operating range:

Diameter: DN 40 ... DN 1,200 (1.5" ... 50”)
Temperature: ... 900 °C (1,652 °F)
Pressure: max. 16 barg (232 PSI)

Standards and approvals:

Design codes and options:
Bellows: EJMA 9, EN14917, EN13480, EN13445, ASME B31.3

NDT and documentation:
EagleBurgmann EJ holds type approvals for a range of UM type metal expansion joints, covering e.g. steel ships / marine / offshore units. Furthermore, an Individual design approval can be a possibility for joints in excess of specific type approvals.

Recommended applications:
  • Power plant technology
  • Shipbuilding
  • Engine exhaust systems
