TB Type expansion joints

These in line pressure balanced expansion joints are designed to apply minimum forces onto connecting, load sensitive equipment. These expansion joints are made for mainly axial and lateral movements.

Product Description

Features:
  • In line pressure balanced expansion joints.
  • Pressure thrust eliminated by means of force balancing design principle.
  • Designed to apply minimum forces onto connecting, load sensitive equipment.
  • Mainly for axial and lateral movements.
Benefits:
  • No need for main anchors to obtain pressure thrust load.
  • Minimum load transferred onto connecting equipment - Not affected by system pressure fluctuations.
  • Highly customizable design: Bellows geometry, Material options and combinations.
  • Multiply bellows with low spring rate and high cycle life.

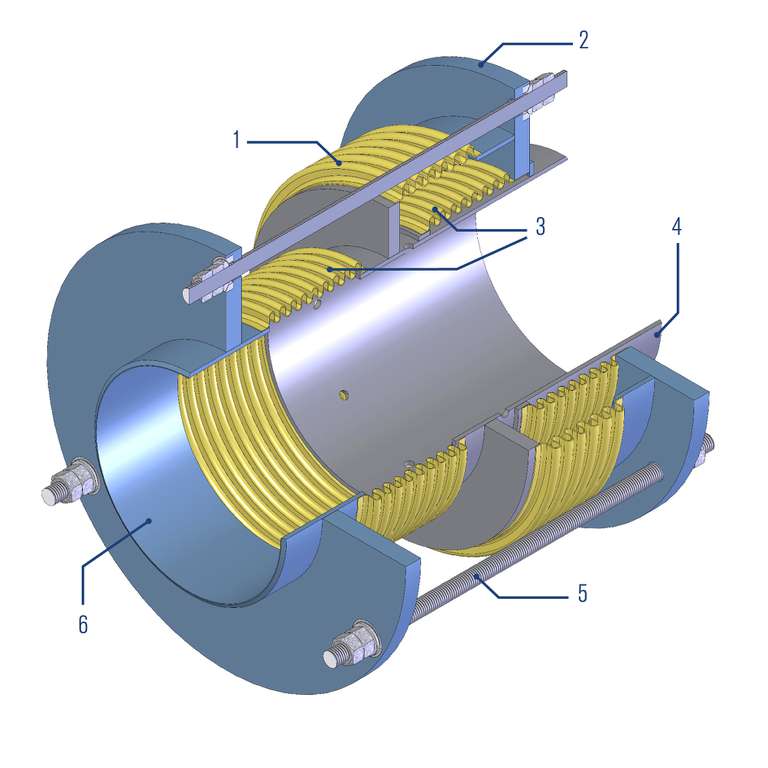

ITEMDESCRIPTION
1Balancing bellows
2Flange
3Line bellows
4Inlet / line pipe
5Tie rod
6Weld end

Technical Specifications

Operating range:

Diameter: DN 100 ... 1,000 (4" ... 40”)
Temperature: ... 550 °C (1,022 °F)
Pressure: max. 50 barg (725 PSIG)

Standards and approvals:

Design codes:
EJMA 9, PED 97/23/EC acc. to EN 13480, EN 13445, EN 14917, AD2000 and ASME B31.3

NDT and documentation:
According to PED 97/23 EC rules and regulations (declaration of conformity)
Documentation can be provided per customer request e.g.:
- Test, measurement or calculation reports
- Material, test or inspection certificates
- Design, type or 3rd party approval

Recommended applications:
  • Oil and gas industry
  • Refining technology
  • Power plant technology
  • Pulp and paper industry
  • Metal production and processing
  • Shipbuilding
  • Water and waste water technology
  • Steam turbines
  • Water cooling systems
  • Steam transport lines
  • Compressor / pumping stations
  • Lubrication systems
  • Storage tanks
Notes:

Tied metal expansion joints might require alignment guides to ensure the expansion joint only see the intended movements.
